Oil Sublimation Printer 370mm Roller

Download Catalog

Oil roller heat roller sublimation printer

Automatic Multifunctional Roll To Roll Rotary Sublimation Roller Heat Transfer Machine

Fabric Textile Calender Oil Heating Roller Heat Press Sublimation Transfer Printing Machine

sublimation roll to roll heat press machine transfer paper roller heating machine

Industrial sublimation roll to roll heat press machine printed transfer heat sublimation printing machine for fabric Rotary Heat Press 100% Full Oil Drum

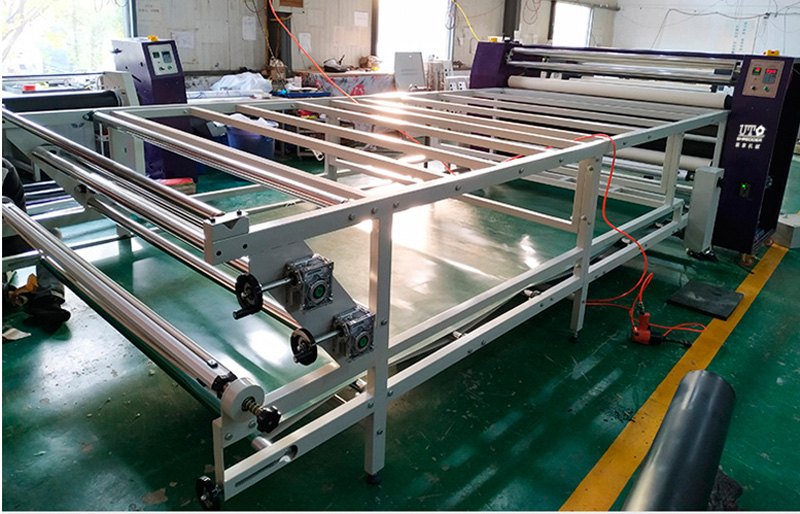

 UT roller heat press machine is used to transfer printed images from sublimation paper to fabric. Paper width: 1.2m /1.7m / 1.8m/ 1.9m / 2.0m. Length no limit. Greatly improve working efficiency.

There seriers sublimation printer has one external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.

 Features:

1.Roll to roll,piece to piece printing.

2.Sudden stop alarm system in optional.

3. Printing speed 20-80 m/h.

4. Intelligent Touch Screen Control (Auto Switch On; User Friendly Speed Settings; Tempeture control, Smart Blanket Alignment), convenient & efficient& accuracy.

5. Teflon coating on the surface of hot roll, high temperature resistance, anti-static, long life.

6. Advanced heat reverse function, uniform temperature around and around.

7. Equipt the swift to correct the blanket off-line.

8. Roller press blanket, assure the tension and tighness between the blanket and roller, get perfect pringt effect.

9. Equipt tension adjustment, assure the paper and textile into the printing smoothly, reduce the wrinkle.

10. Durable electric power. Mark each wire to get exact maintaince.

11. Provide OEM & ODM.

 Application:

Its suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel fabrics, blankets, towels, mouse pads, scarves and other products in the piece, etc, especially the roll fabrics need to continuous print.

Specification about 370mm roller

Model

UTOP1237

UTOP1737

UTOP1837

UTOP1937

UTOP2037

Heat Mode

Oil

Oil

Oil

Oil

Oil

Blanket Widness   (mm)

1220

1720

1820

1920

2020

Printing Widness   (mm)

1100

1600

1700

1800

1900

Roller Diameter   (mm)

370

370

370

370

370

Roller Surface

Teflon

Teflon

Teflon

Teflon

Teflon

Heat Power (kw)

12

17

19

19

21

Total Power (kw)

13

18

20

22

24

Volatage (V)

380   Three-phase

380   Three-phase

380   Three-phase

380   Three-phase

380   Three-phase

Printing Speed   (m/hour)

30-150

30-150

30-150

30-150

30-150

Temperature Range (℃)

0-250

0-250

0-250

0-250

0-250

Extension &   Retraction System (set)

3

3

3

3

3

Blanket off-line   Alarm

Optional

Optional

Optional

Optional

Optional

Auto Cooling

Optional

Optional

Optional

Optional

Optional

Adust Blanket

Manual

Manual

Manual

Manual

Manual

Dimension L*W*H   (mm)

2030*1350*1035

2030*1850*1035

2030*1950*1035

2030*2050*1035

2030*2150*1035

Weight (kgs)

950

1200

1300

1400

1500
