Jaw Crusher

Download Catalog

Jaw crusher

Jaw crusher from Zibo United Tech Machinery Co., Ltd. is simple structure, easy maintenance, stable performance, high capacity, even final particles and high crushing ratio. High reliability, low investment, low noise, less dust. It is widely used in mining, metallurgy building materials, highway, railway, hydraulic engineering, chemical industry, etc. it is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 30Mpa.

The motor drives the mobile jaw up and down through eccentric shaft. The angle between toggle plate and mobile jaw increases when mobile jaw plate moves up. So the mobile jaw plate closes up the fixed jaw plate. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when mobile jaw moves down. The mobile jaw plate move away from the stationary jaw plate with the pull of draw rod and spring, so the crushed stone will be discharged from the outlet. This process will repeat. The moving jaw will crush and discharge the stuff circularly.

Jaw Crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.It is suitable for crushing various stone ,ores and rocks, such as granite, dolomite, river pebble, quartz stone, iron ore, calcite and other materials.

PE series jaw crusher, widely used in a crushing process, with a capacity of 1-800tph, feeding size 125-1000mm, output size10-350 mm, which is suitable for the production of various soft and hard materials.

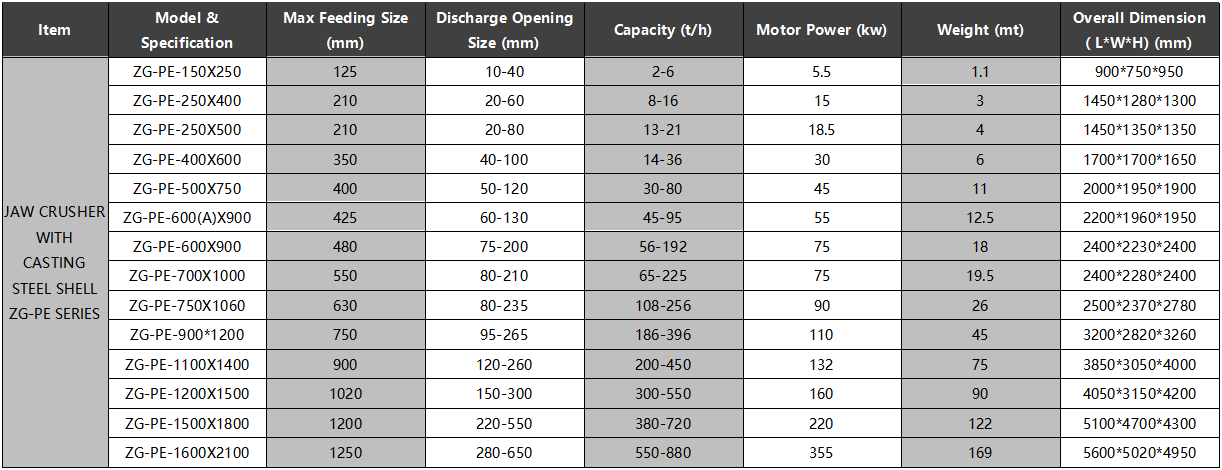

Main Technical Data of  Jaw Crusher ZG-PE Series:

ZG-PE 型铸钢壳颚式破碎机英.png

As efforts about our technical persons, we improved the design about the Jaw crusher. We are using principles of crankshaft, divided into two forces, reduced motor power, enhanced rotational speed, increased crushing fineness, raised capacity, It is saving and capacity increasing. It is proved that it is safety, reliable, high efficiency,  and less energy in the operation. It is the best suitable and really energy equipment in the cement factory, mining and quarrying industries.

PEX series Jaw crusher, usually used in secondary crushing process, with a capacity of 5-100 tph, feeding size 125-250 mm, output size 10-90 mm, which is suitable for the production of various fine aggregates.

Main Technical Data of Jaw Crusher ZG-PEX Series:

ZG-PEX 型细碎铸钢壳颚式破碎机英.png

Note:

1. The voltage about the power supply can be selected by the customer’s specific requirements.

2. The crusher capacity can be influenced by the material composition and output size.

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
