Description:

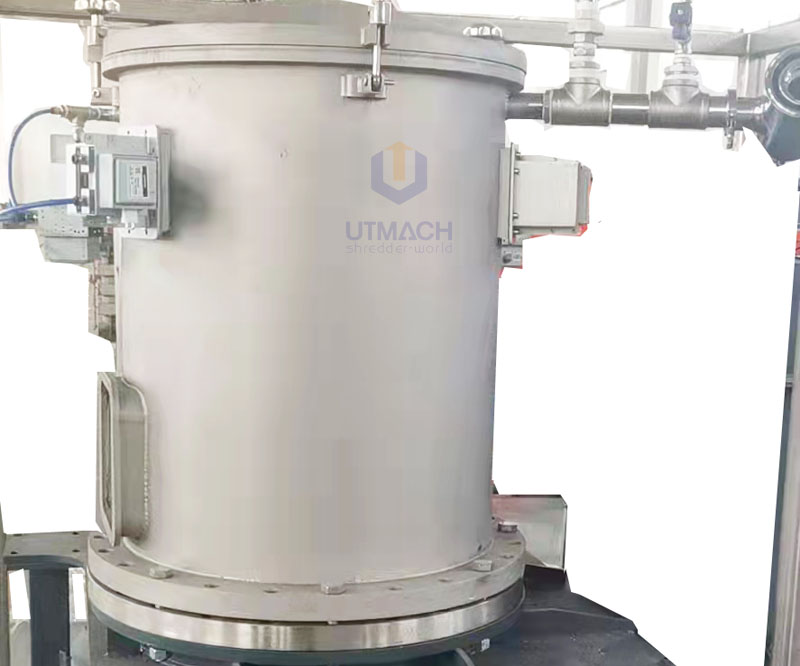

Medical waste microwave disinfection hot rotary cutting system consists of microwave disinfection system, hot rotary cutting system, auxiliary system, automatic control system, etc
Working principle: The flow chart of microwave disinfection is as follows:
Open the bin door, pour the medical waste into the bin and close the bin door; Turn on the rotary motor to perform thermal rotary cutting on the medical waste and crush the medical waste into fragments; At the same time, the microwave disinfection system is activated to complete the medical waste disinfection process through microwave magnetic field radiation, and the waste gas in the treatment process is discharged safely through the biological filter and activated carbon filter. Microwave generator through the circulating water system for water cooling, at the same time through the temperature detection of disinfection warehouse atomization spray, to ensure disinfection effect. After disinfection, open the discharge door through the cylinder to clear out the medical waste after disinfection.
Model | Volume
(L) | Motor power
(kw) | Weight
(kgs) | Dimensions
(L×W×H)
(mm) | Capacity |
WS100 | 100 | 12 | 800 | 1500mm*1800mm*1800mm | 10kg/h |
WS150 | 150 | 12 | 900 | 1500mm*1800mm*2000mm | 15kg/h |
WS200 | 200L | 12 | 1000 | 1500mm*1800mm*2200mm | 20kg/h |
WS250 | 250L | 14 | 1200 | 1600mm*2000mm*2000mm | 25kg/h |
WS300 | 300L | 14 | 1300 | 1600mm*2000mm*2200mm | 30kg/h |
What service do you need? Debugging and technical support
