Oil Sublimation Printer 220mm Roller

Download Catalog

Oil roller heat roller sublimation printer

(Automatic Multifunctional Roll To Roll Rotary Sublimation Roller Heat Transfer Machine

Fabric Textile Calender Oil Heating Roller Heat Press Sublimation Transfer Printing Machine

sublimation roll to roll heat press machine transfer paper roller heating machine

Industrial sublimation roll to roll heat press machine printed transfer heat sublimation printing machine for fabric Rotary Heat Press 100% Full Oil Drum)

UT roller heat press machine is used to transfer printed images from sublimation paper to fabric. Paper width: 1.2m /1.7m / 1.8m/ 1.9m / 2.0m. Length no limit. Greatly improve working efficiency.

There seriers sublimation printer has one external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.

 Features:

1.Roll to roll,piece to piece printing.

2.Sudden stop alarm system in optional.

3. Printing speed 20-80 m/h.

4. Intelligent Touch Screen Control (Auto Switch On; User Friendly Speed Settings; Temperature control, Smart Blanket Alignment), convenient & efficient& accuracy.

5. Teflon coating on the surface of hot roll, high temperature resistance, anti-static, long life.

6. Advanced heat reverse function, uniform temperature around and around.

7. Equipt the swift to correct the blanket off-line.

8. Roller press blanket, assure the tension and tightness between the blanket and roller, get perfect print effect.

9. Equipt tension adjustment, assure the paper and textile into the printing smoothly, reduce the wrinkle.

10. Durable electric power. Mark each wire to get exact maintaince.

11. Provide OEM & ODM.

 Application:

Its suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel fabrics, blankets, towels, mouse pads, scarves and other products in the piece, etc, especially the roll fabrics need to continuous print.

Specification about 220mm roller


Model

UTOP1222

UTOP1722

UTOP1822

UTOP1922

UTOP2022

Heat Mode

Oil

Oil

Oil

Oil

Oil

Blanket Widness   (mm)

1220

1720

1820

1920

2020

Printing Widness   (mm)

1100

1600

1700

1800

1900

Roller Diameter   (mm)

220

220

220

220

220

Roller Surface

Teflon

Teflon

Teflon

Teflon

Teflon

Heat Power (kw)

7.2

8.2

9.2

10.2

11.2

Total Power (kw)

8

9

10

11

12

Volatage (V)

220/380   Three-phase

380   Three-phase

380   Three-phase

380   Three-phase

380   Three-phase

Printing Speed   (m/hour)

20-80

20-80

20-80

20-80

20-80

Temperature Range (℃)

0-250

0-250

0-250

0-250

0-250

Extension &   Retraction System (set)

3

3

3

3

3

Blanket off-line   Alarm

Optional

Optional

Optional

Optional

Optional

Auto Cooling

Optional

Optional

Optional

Optional

Optional

Adust Blanket

Manual

Manual

Manual

Manual

Manual

Dimension L*W*H   (mm)

2030*1350*920

2030*1850*920

2030*1950*920

2030*2050*920

2030*2150*920

Weight (kgs)

700

800

900

1000

1100

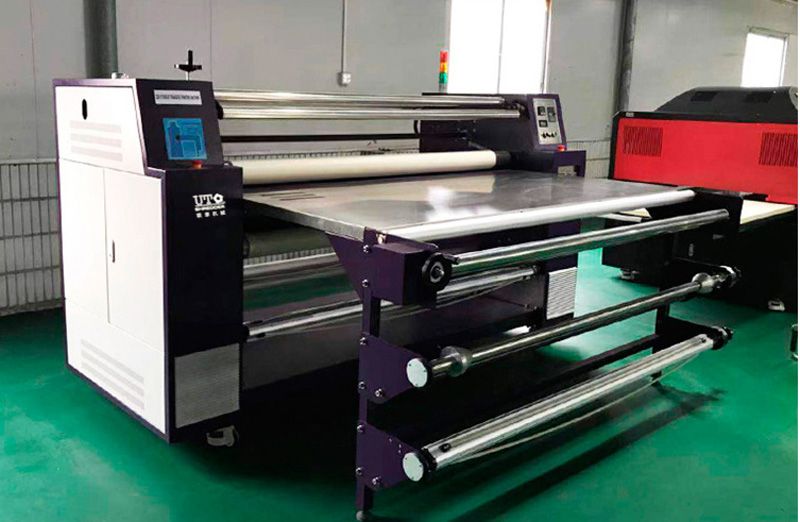

1700-220WM logo.jpg
